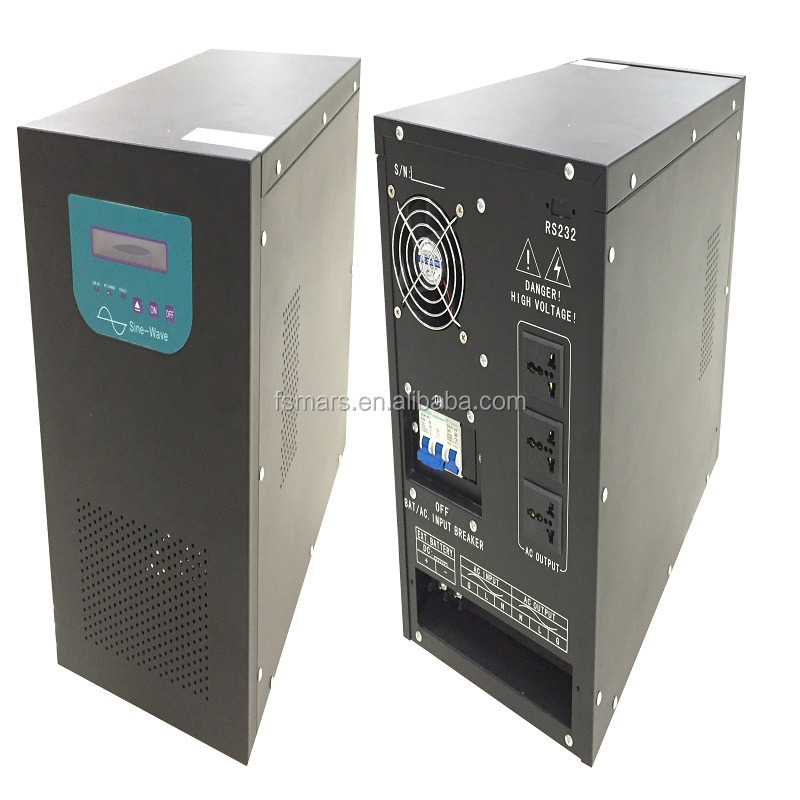

Main features:
1) Excellent performance because of double – MCU intelligent design;
2) Pure sine wave output for compatibility with loads of different types;
3) Visualization of operation status of the equipment through a digital LCD;
4) A wide range of input voltage, accurate output and full automatic voltage stabilization;
5) Settable battery type and charge current for the charge management of batteries of different types;
6) Settable mains supply preferred mode, energy – saving mode and battery preferred mode for easy meeting if the needs of different users;
7) Overall protection functions (battery overvoltage protection, battery under-voltage protection , overload protection , short circuit protection and over temperature protection).
Model: | MT1.5K | MT 2K | MT 3K | MT 4K | MT 5K | MT 6K | ||
Rated power | 1500W | 2000W | 3000W | 4000W | 5000W | 6000W | ||
Battery | Rated voltage | 12V/24VDC | 24V or 48VDC | 48VDC or 96VDC | ||||
Charge current | 5-30A | |||||||
Input | Voltage | 85-138VAC/170-275VAC | ||||||
Frequency | 45-65HZ | |||||||
Output | Voltage | 110V-240VAC±5% (Inversion mode) | ||||||
Frequency | 50/60HZ±1% (inversion mode) | |||||||
Output wave | Pure sine wave | |||||||
Conversion time | <10ms (typical load) | |||||||
Efficiency | >90% (85% resistive load) | |||||||
Overload | 110-120%/30S; >160%/300ms | |||||||
Protection function | Battery overvoltage protection, battery undervoltage protection, overload protection, short circuit protection, overtemperature protection,etc | |||||||
Ambient temperature for operation | 0-40℃ | |||||||
Ambient temperature for storage | -15-+50℃ | |||||||
Operation/storage conditions | 0-90% (no condensation) | |||||||
External dimension: | 245*225*440mm | 265*225*610mm | ||||||
Packing dimension: | 320*290*510mm | 290*340*680mm | ||||||
Project case:
Q: What's the advantage for this inverter from MARS?
1. More than 10years experience ,provide OEM&ODM products.
2.Normal system design base on customer's feedback, it can ensure system steady operating and high efficiency;
3.CE ROHS Certification, Easy installation according to our instructions,
4.Professional parts supply.
Q: Is the system solution always the same? Can I customize one?
A: Yes we have our professional teams making solutions for our clients. Solutions are mainly customized based on different sunshine time and power consumption.
Q: Is the solution for complete set? If not, what else are needed?
A: Yes we can provide solution of complete set. If you don't need complete set, basic parts are also available.For example,maybe you need to make the battery in your location.
Q: Who arranges the shipping?
A: We could help you arrange the shipment. If you have your agent,we also can ship to your agent.
Q: How to do the installation?
A: This portable solar system installation is very simple,only need to connect solar panel with controller,and push ON/OFF button,then it will start to work.
More details,pls contact us directly!
